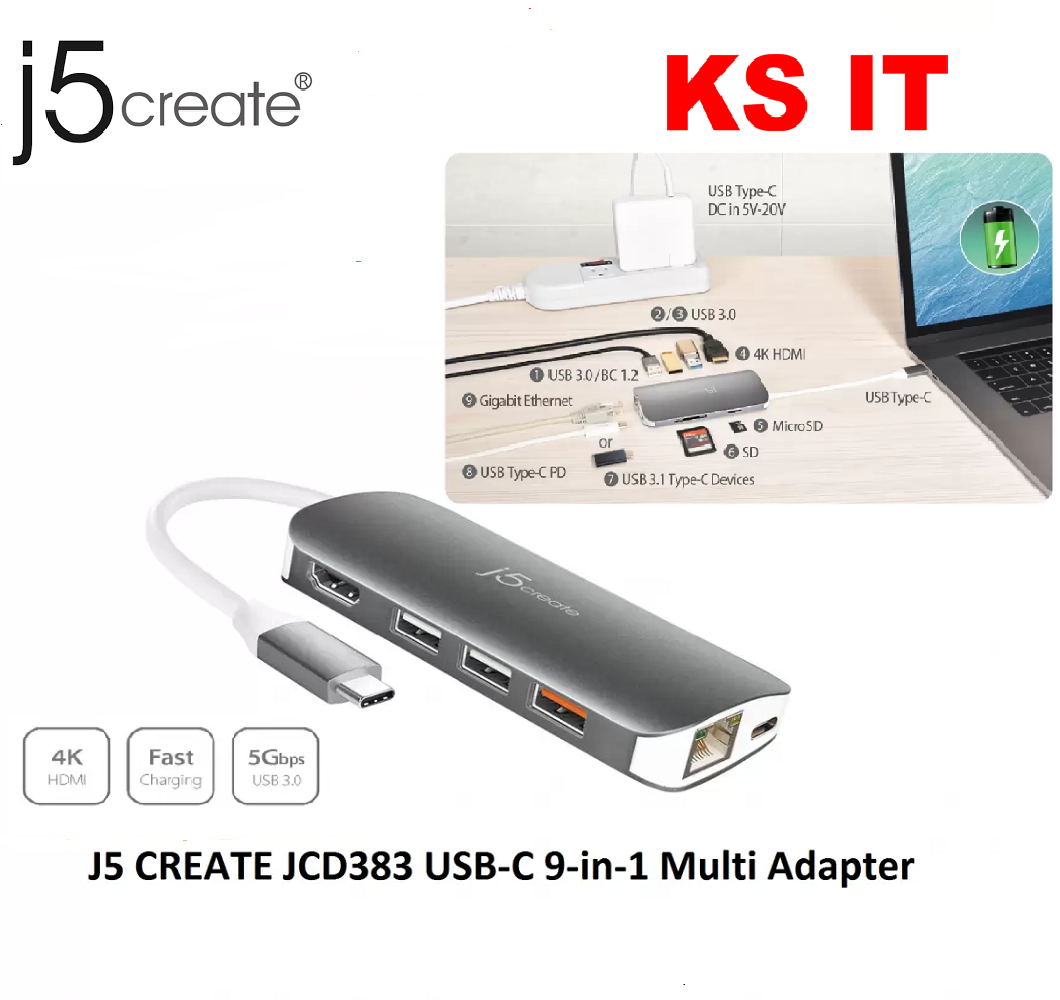

J5 CREATE JCD383 Type-C Multi Adapter
MYR369.00
Brand: J5 CREATE
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||
| Hardware | |
| Warranty | 2-Year Limited |
| Host Connector | 1 - USB-C™ Male |
| Video Output | 1 - HDMI™ Female |
| Power Source | Bus-powered or self-Powered |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Supported | Yes |
| Ports | 1 - USB-C™ 3.0 (upstream & downstream charging, power delivery 3.0 and data transfer) 2 - USB™ Type-A 3.1 Gen 1 1 - USB™ Type-A 3.1 Gen 1 with BC 1.2 1 - SD™ & microSD™ 1 - 4K HDMI™ 1 - RJ45 Gigabit Ethernet |
Performance | |
| Maximum Display Resolution | 3840 x 2160 |
| Maximum Display Refresh Rate | 30 Hz |
| Maximum Data Transfer Rate | 5 Gbps |
| Displays Supported | 1 |
| Compatible Networks | 10/100/1000 Mbps |
| Audio Channel | 2.1 via HDMI™ |
| Power | |
| Power Delivery | Up to 85W via USB-C™ |
| Power Consumption | ≤ 500 mA |
| Input Current | Up to 5A |
| Input Voltage | Up to 20V |
| Output Current | Up to 4.25A |
| Output Voltage | Up to 20V |
Physical Specifications | |
| Color | Silver |
| Enclosure Type | Aluminum |
| Cable Length | 5.4 in. (137 mm) |
| Product Height | 4.13 in. (105 mm) |
| Product Width | 1.97 in. (50 mm) |
| Product Depth | 0.65 in. (16.5 mm) |
| Product Weight | 2.75 oz (78g) |
| Storage Temperature | 14 to 149°F (-10 to 65°C) |
| Storage Humidity | < 85% non-condensing |
| Operating Temperature | 32 to 118°F (0 to 48°C) |
| Operating Humidity | < 85% non-condensing |
