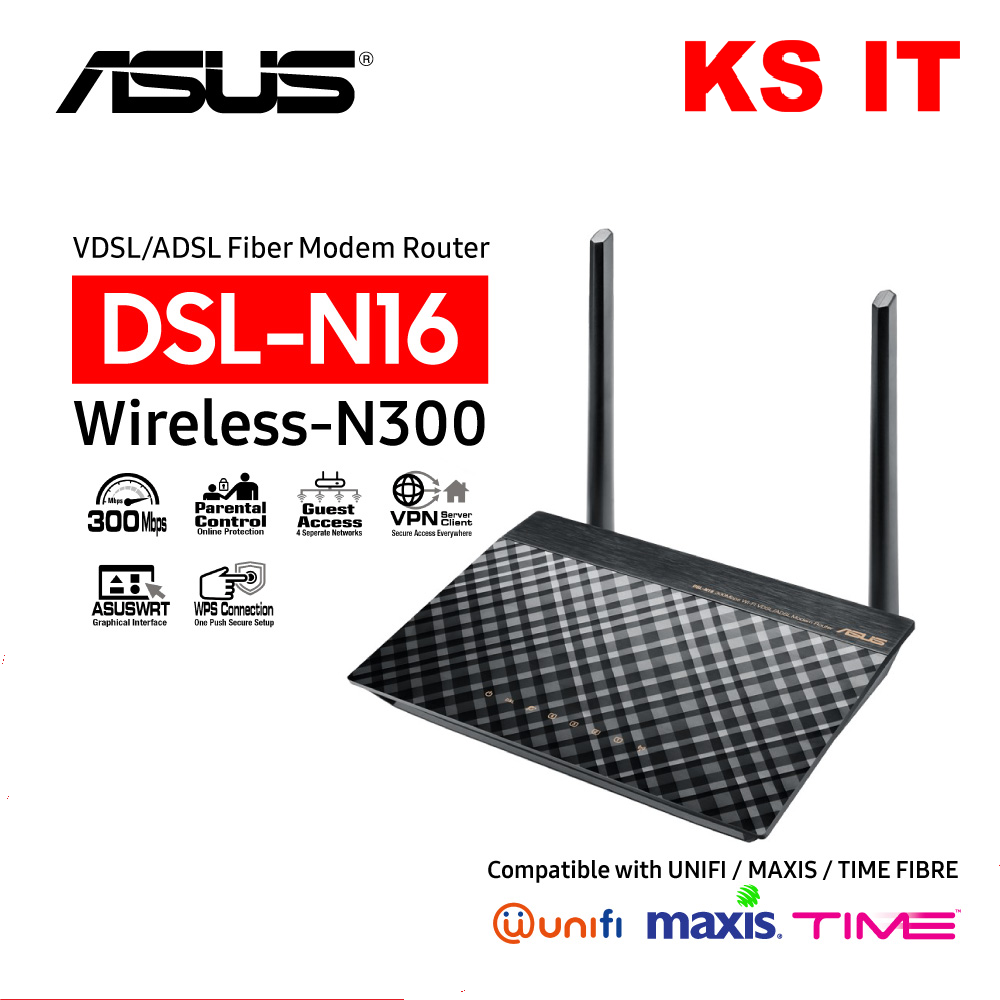

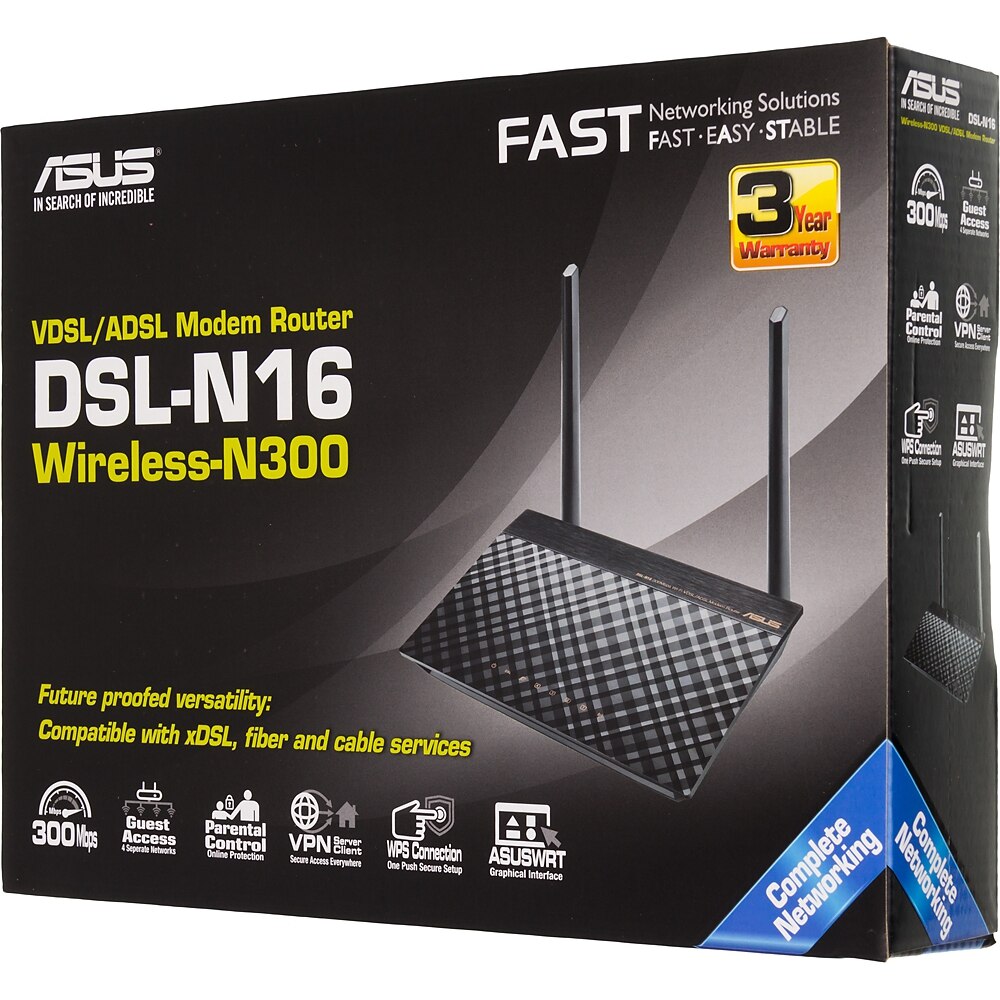

ASUS DSL-N16 N300 WIRELESS ADSL/VDSL MODEM ROUTER
MYR159.00
Brand: ASUS
Get shipping estimates
| Country | ||
| State | ||
| Shipping Method | ||
|
|
||
Network Standard
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6
Product Segment
N300 complete networking : 300 Mbps
Wi-Fi Data Rate
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
xDSL Data Rate
‧VDSL2/ADSL2+/ADSL2/ADSL multimode
‧Support Annex A/B/I/J/L/M
‧Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
‧VDSL2 interface compliance with ITU-T G.993.2
‧ITU-T G.992.1 (G.dmt), Annex A, and B Compliant
‧ITU-T G.992.2 (G.lite), Annex A, and B Compliant
‧ANSI T1.413 Compliant
‧ITU-T G.992.3 (ADSL2) Compliant, Annex A, B, L, and M
‧ITU-T G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M
‧ITU-T G.993.2 Compliant, Annex A, B
‧ITU-T G.993.5 (Vectoring)
‧ITU-T G.998.4 (G.inp) Improved impulse noise protection
‧ATM and PTM (dual-priority)
VDSL2 Upstream: 150Mbps, Downstream: 200Mbps
ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps
ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps
Features
‧DHCP server, firewall/NAT, DynDNS
‧VPN server(PPTP)
‧VPN client(PPTP/L2TP)
‧Dual WAN Fail over/Fail back/Load balance
‧Traffic monitor/Quality of Service(QoS)
‧DSL spectrum
‧IPTV
‧DSL feedback mechanism
‧Save/restore configuration file
‧WiFi Bandwidth Limiter
Antenna
External dBi antenna x 2
*Antenna signal power may vary by region due local regulations and requirements
LED Indicator
Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi
Button
WPS Button, Reset Button, Power Button, Wireless on/off Button

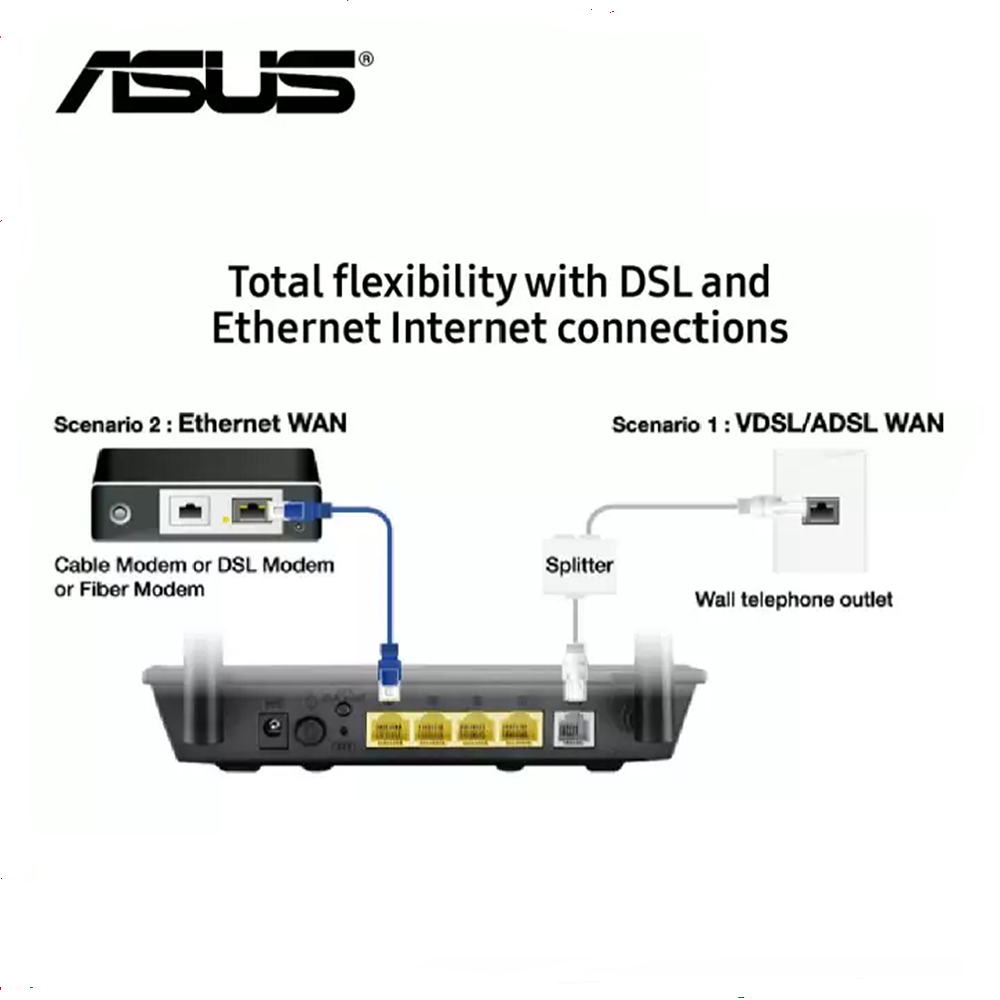

Ports
1 x RJ11 for xDSL
4 x RJ45 10/100 BaseT for LAN
Operating Frequency
2.4GHz
Operation Channel
13 Europe (ETSI)
Memory
16MB FLASH,64MB DDR2 RAM
Output Power
b mode : 20.5 dBm
g mode : 17 dBm
n mode : 17 dBm
Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK
Management
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
UPnP IGD 1.0
Auto VPI/VCI detection
Configuration backup and restore
Diagnostics
Log & Trace function
VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
PPTP client
L2TP client
Power Adapter
AC Input : 110 ~240 V(50~60HZ)
DC Output : 12 V/0.5 A
Power Consumption : 6 W Max.
Certificates
CE
Dimensions
19 x 23.5 x 3.5 ~ cm (WxDxH) (Without Bezel)
Weight
225 g (Device Only)
OS Support
Windows® 10
Windows® 8.1
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® XP
Mac OS X 10.4
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Package Content
‧DSL-N16 Wireless VDSL/ADSL Modem Router
‧Network cable
‧Phone cable
‧Power adapter
‧Quick start guide
